River dredging plays a vital role in maintaining waterways, preventing flooding, and ensuring smooth navigation for vessels. One of the most effective tools for this purpose is the River Dredging Cutter Suction Dredger (CSD). This specialized machine is essential for dredging operations, offering high efficiency in removing sediments from riverbeds. In this blog, we’ll explore what a Cutter Suction Dredger is, how it works, and its importance in river maintenance.
What is a Cutter Suction Dredger?

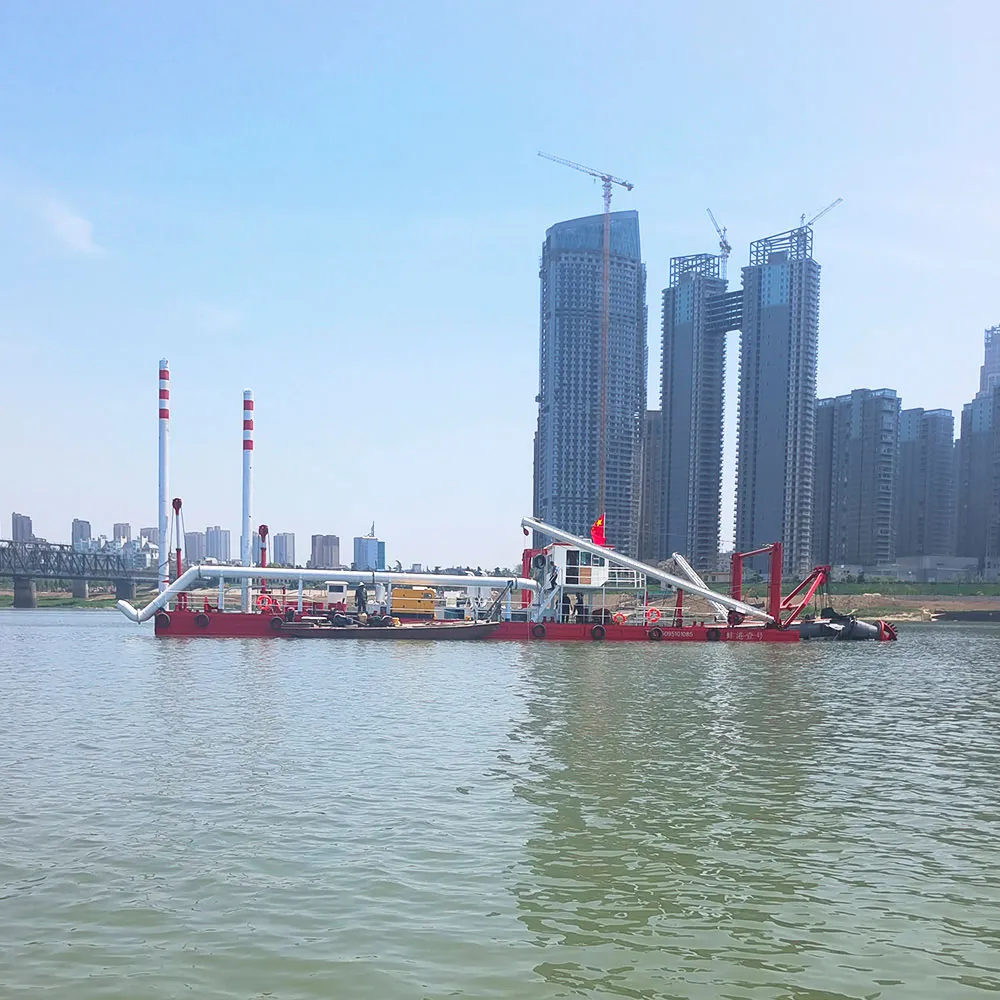

A Cutter Suction Dredger (CSD) is a type of dredging machine equipped with a rotating cutter head and a powerful suction system. It is designed to remove sediments, sand, mud, and debris from the bottom of rivers, lakes, and coastal areas. The dredger combines mechanical excavation with hydraulic transportation, making it one of the most efficient tools for dredging in both soft and hard soil conditions.
The machine consists of a floating platform, a dredge pump, a cutter head mounted at the front of a suction pipe, and various discharge pipelines that transport the dredged material to a designated location. The cutter head is used to break up or loosen the sediments on the riverbed, which are then sucked up through the suction pipe and transported away.
How Does a Cutter Suction Dredger Work?
1. Positioning the Dredger
The dredger is positioned at the dredging site, typically anchored in place by spuds or anchor winches. The positioning system ensures that the dredger remains stable and can work with precision.
2. Cutter Head Operation
The cutter head rotates and excavates the riverbed, breaking up compacted sediments or soil. This step is crucial for loosening hard or consolidated material, making it easier to remove.
3. Suction of Material
Once the sediment is loosened by the cutter head, the suction pipe draws in the material through hydraulic pumps. The suction process allows for a continuous flow of sediment, ensuring efficient removal.
4. Transporting the Dredged Material
After being sucked up, the dredged material is transported through discharge pipelines. These pipelines can be quite long and may either deposit the material on land (for land reclamation or disposal) or into hopper barges for transportation to other locations.
5. Spud Operation for Dredger Movement
Spuds are long poles that anchor the dredger to the riverbed. Once a section is dredged, the dredger retracts the spud and moves forward using winches or propellers to reposition for the next cut.
Applications of River Dredging Cutter Suction Dredgers
- River Maintenance and Deepening: CSDs are widely used to deepen river channels, ensuring safe passage for commercial vessels and reducing the risk of flooding by increasing water capacity.
- Land Reclamation: The dredged material can be used for land reclamation projects, such as creating new land areas for agriculture, construction, or flood defenses.
- Environmental Remediation: In cases where rivers are polluted with contaminated sediments, Cutter Suction Dredgers help remove the pollutants, aiding in environmental cleanup efforts.
- Flood Control: By removing excess sediment and debris from rivers, CSDs help prevent blockages that could lead to flooding during periods of heavy rainfall.
Benefits of Using Cutter Suction Dredgers for River Dredging
- High Efficiency: The combination of cutting and suction allows for continuous operation, making CSDs highly efficient in large-scale dredging projects.
- Versatility: CSDs can handle a wide variety of materials, from soft mud to hard rock, and can be adapted for use in different types of waterways, including rivers, lakes, and coastal areas.
- Long Reach: The long suction pipes and powerful pumps enable CSDs to work at significant depths, ensuring comprehensive dredging even in deep river channels.
A River Dredging Cutter Suction Dredger is an indispensable tool for maintaining the health and navigability of rivers. Its combination of mechanical and hydraulic capabilities makes it ideal for a wide range of dredging projects, from deepening channels to environmental cleanups. By understanding how a CSD operates, we can appreciate its vital role in preserving our waterways and preventing natural disasters like flooding.
