Exploring the Primary Functions and Benefits of 2 Pole DC Circuit Breakers in Electrical Systems

2024-06-13

In the realm of electrical systems, safety and reliability are paramount. Circuit breakers play a crucial role in protecting electrical circuits from damage due to overcurrent and short circuits. Among the various types of circuit breakers, the 2 Pole DC Circuit Breaker stands out for its specific applications and benefits. This blog will explore the primary functions and benefits of using a 2 Pole DC Circuit Breaker in electrical systems, highlighting its importance in modern electrical engineering.


Understanding the 2 Pole DC Circuit Breaker

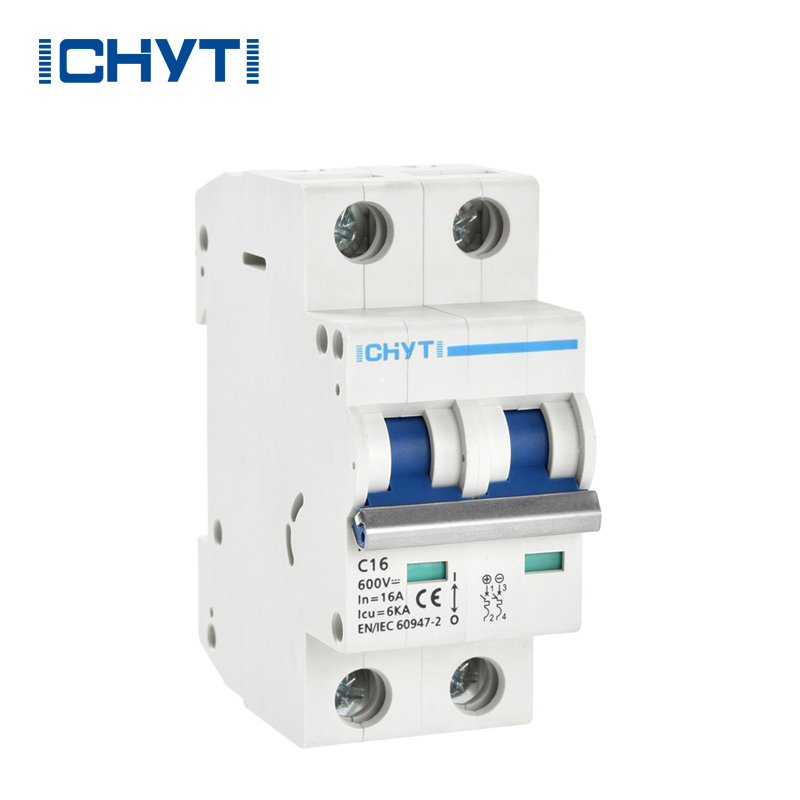

A 2 Pole DC Circuit Breaker is designed to interrupt the flow of direct current (DC) across two poles simultaneously. This type of breaker is commonly used in applications where it is necessary to control and protect two separate circuits or a single circuit with two conductors. The dual-pole design ensures that both conductors are disconnected in the event of a fault, providing comprehensive protection.


Primary Functions of a 2 Pole DC Circuit Breaker

1. Overcurrent Protection

The primary function of any circuit breaker is to protect electrical circuits from overcurrent conditions, which occur when the current flowing through the circuit exceeds its rated capacity. Overcurrent can cause overheating, damage to equipment, and even fire hazards. A 2 Pole DC Circuit Breaker detects overcurrent conditions and interrupts the circuit, preventing damage and ensuring safety.


2. Short Circuit Protection

Short circuits occur when there is a direct connection between two points in a circuit, allowing a large current to flow uncontrollably. This can lead to significant damage and potential safety hazards. A 2 Pole DC Circuit Breaker quickly detects and interrupts short circuits, isolating the fault and protecting the rest of the system from damage.


3. Double Pole Isolation

In applications where two conductors carry the current, such as in certain DC motor circuits or solar power systems, it is crucial to disconnect both poles simultaneously to ensure complete isolation of the circuit. The 2 Pole DC Circuit Breaker provides this double pole isolation, ensuring that both conductors are disconnected, enhancing safety and preventing potential electrical hazards.


4. Controlled Interruption

The 2 Pole DC Circuit Breaker is designed to interrupt the circuit in a controlled manner, minimizing the risk of arc formation and ensuring safe disconnection. This controlled interruption is particularly important in DC systems, where the absence of a zero-crossing point (as found in AC systems) makes arc suppression more challenging.


Benefits of Using a 2 Pole DC Circuit Breaker

1. Enhanced Safety

One of the most significant benefits of using a 2 Pole DC Circuit Breaker is the enhanced safety it provides. By disconnecting both poles simultaneously, the breaker ensures complete isolation of the circuit, reducing the risk of electrical shocks and other hazards. This is especially important in high-voltage DC applications, where the potential for dangerous arcing is higher.


2. Increased Reliability

The 2 Pole DC Circuit Breaker improves the reliability of electrical systems by providing robust protection against overcurrent and short circuit conditions. By quickly isolating faults, the breaker prevents damage to critical components and reduces the likelihood of system failures, ensuring continuous and reliable operation.


3. Versatility in Applications

2 Pole DC Circuit Breakers are versatile and can be used in a wide range of applications, including renewable energy systems, industrial machinery, electric vehicles, and more. Their ability to handle high current loads and provide comprehensive protection makes them suitable for various industrial and commercial settings.


4. Simplified Wiring and Installation

Using a 2 Pole DC Circuit Breaker can simplify wiring and installation processes. By integrating protection for two conductors into a single device, it reduces the need for multiple breakers and associated wiring, streamlining installation and maintenance.


5. Cost-Effectiveness

While providing enhanced protection and reliability, 2 Pole DC Circuit Breakers can also be cost-effective solutions. Their ability to protect two circuits or conductors with a single device reduces the need for additional components, potentially lowering overall system costs.


Applications of 2 Pole DC Circuit Breakers

Renewable Energy Systems

In solar power installations, 2 Pole DC Circuit Breakers are used to protect photovoltaic (PV) arrays and inverters from overcurrent and short circuits, ensuring the safe and efficient operation of the system.


Electric Vehicles

Electric vehicle (EV) charging stations and onboard electrical systems use 2 Pole DC Circuit Breakers to protect against overcurrent and ensure the safety of the vehicle's electrical components.


Industrial Machinery

Industrial machinery and automation systems often utilize 2 Pole DC Circuit Breakers to protect DC motor circuits and control systems, enhancing safety and reliability in manufacturing processes.


Conclusion

The 2 Pole DC Circuit Breaker is a critical component in modern electrical systems, offering robust protection against overcurrent and short circuit conditions while ensuring the complete isolation of circuits. Its enhanced safety features, increased reliability, versatility, simplified installation, and cost-effectiveness make it an invaluable tool in a wide range of applications, from renewable energy systems to industrial machinery and electric vehicles. Understanding the primary functions and benefits of 2 Pole DC Circuit Breakers helps in selecting the right protective devices for specific needs, ensuring the safety and efficiency of electrical systems.
